LAUNCH® Tread Master

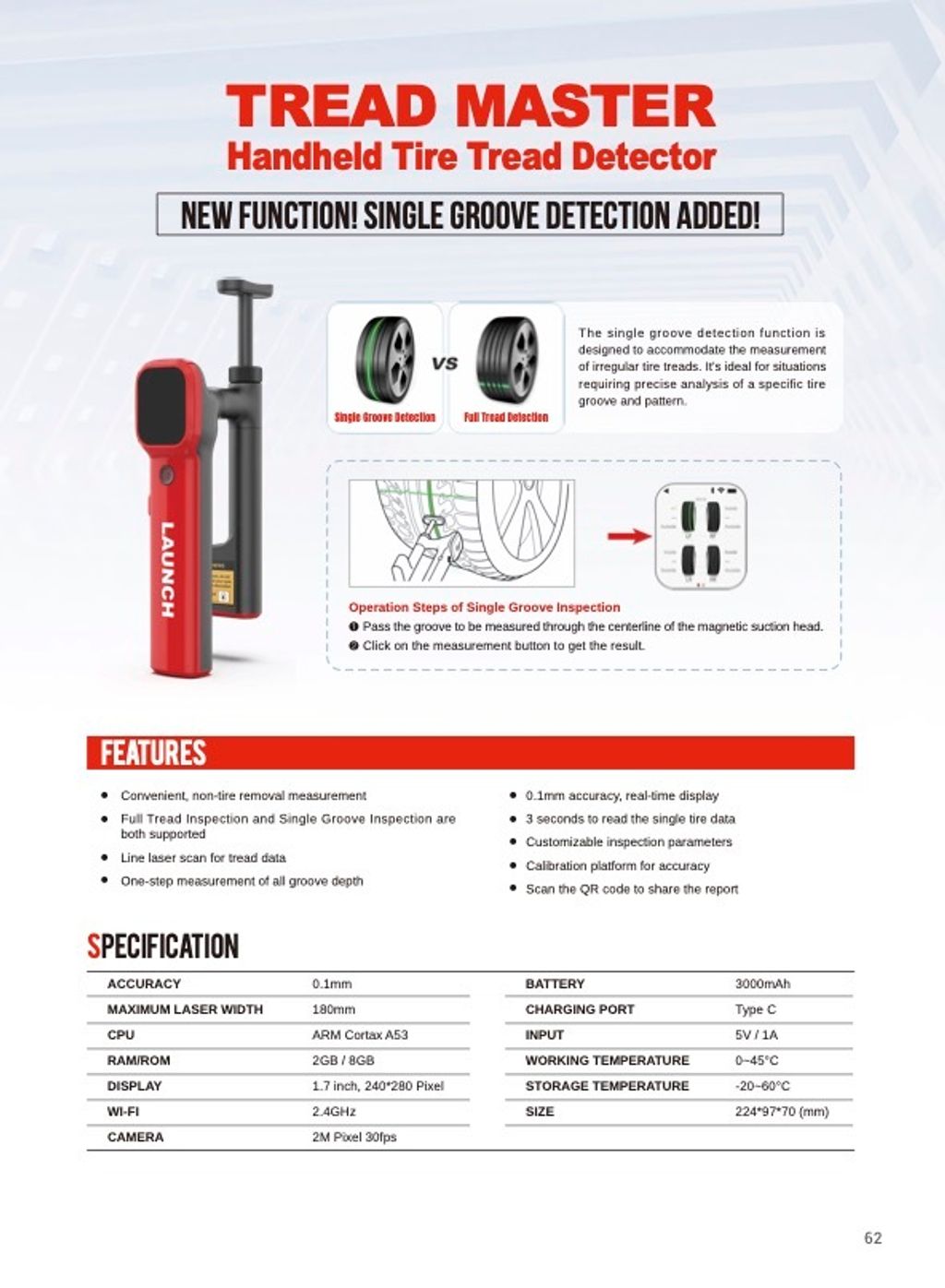

LAUNCH® | Tread Master

Handheld Tire Tread Detector

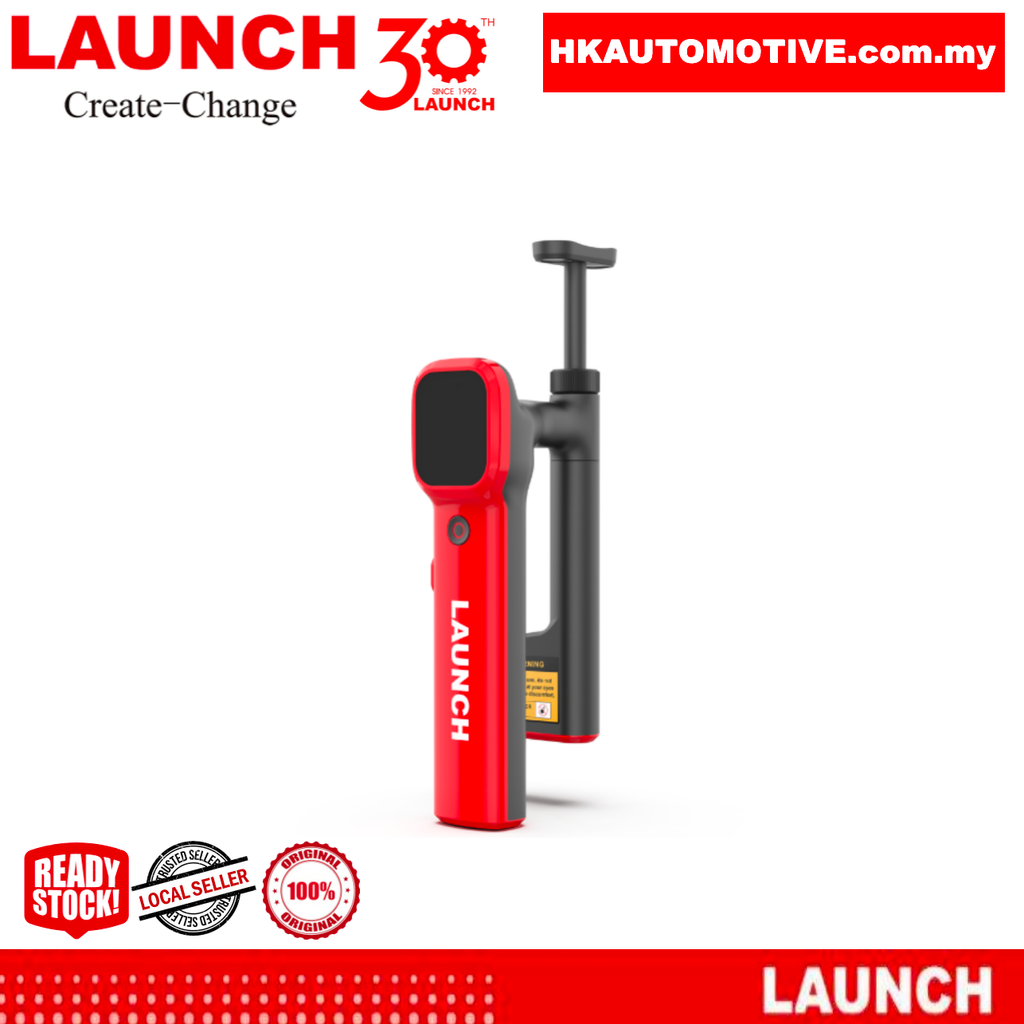

LAUNCH Tread Master is a handheld tire tread depth laser measuring tool with an accuracy of up to 0.1mm, capable of performing full surface measurements. With no tire disassembly or lifting, the operation is flexible and easy. Its innovative structural design eliminated the limitation of the chassis height, utilizing linear laser scanning to complete the full tire surface measurement in one go.

Feature

• Convenient, non-tire removal measurement.
• Full tread scan with laser data collection.
• One-step measurement of full groove depth.
• 0.1mm accuracy, real-time display.
• 3 seconds to read the single tire data.
• Customizable inspection parameters.
• Calibration platform for accuracy.
• Scan the QR code to share the report.

Specification:

• Accuracy: 0.1mm
• Maximum Laser Width: 180mm
• CPU: ARM Cortax A53
• RAM/ROM: 2GB/8GB
• Display: 1.7inch, 240*280 Pixel
• WIFI: 2.4GHz
• Camera: 2M Pixel 30fps
• Battery: 3000mAh
• Charging Port: Type C
• Input: 5V/1A
• Working Temperature: 0℃~45℃
• Storage Temperature: -20℃~60℃
• Dimension: 211.5*99*34.5 (mm)
• Size: 224*97*70mm

Warranty and Certification

• 12 months carry-in warranty against manufacture defect, effective from the date on delivery
• On-site service available on request, labour and transport charge apply (Including warranty period)
• Malaysia original set registered
