HKUNICO® HTL2840E 4Ton Baseplate 2-Post Car Lifts

HKUNICO® | HTL-2840E
Electro-hydraulic symmetric base plate 2-Post Lift with telescope double stage pick up pads and automatic engagement of mechanical safety locks with Single point release system.

Technical data:

• Lifting Capacity: 4000kg
• Min. Height: 100mm
• Max. Lifting Height: 1800mm
• Overall Height: 2790mm
•  Overall Width: 3477mm
• Width between Posts: 2940mm
• Short Arm Length: 760~1150mm
• Long Arm Length: 900~1450mm
• Lifting/Lowering Time: 55 Sec./35 Sec.
• Motor Power: 2.2kW
• Power Supply: 220V/50Hz/1Ph
• Net weight: 650Kg

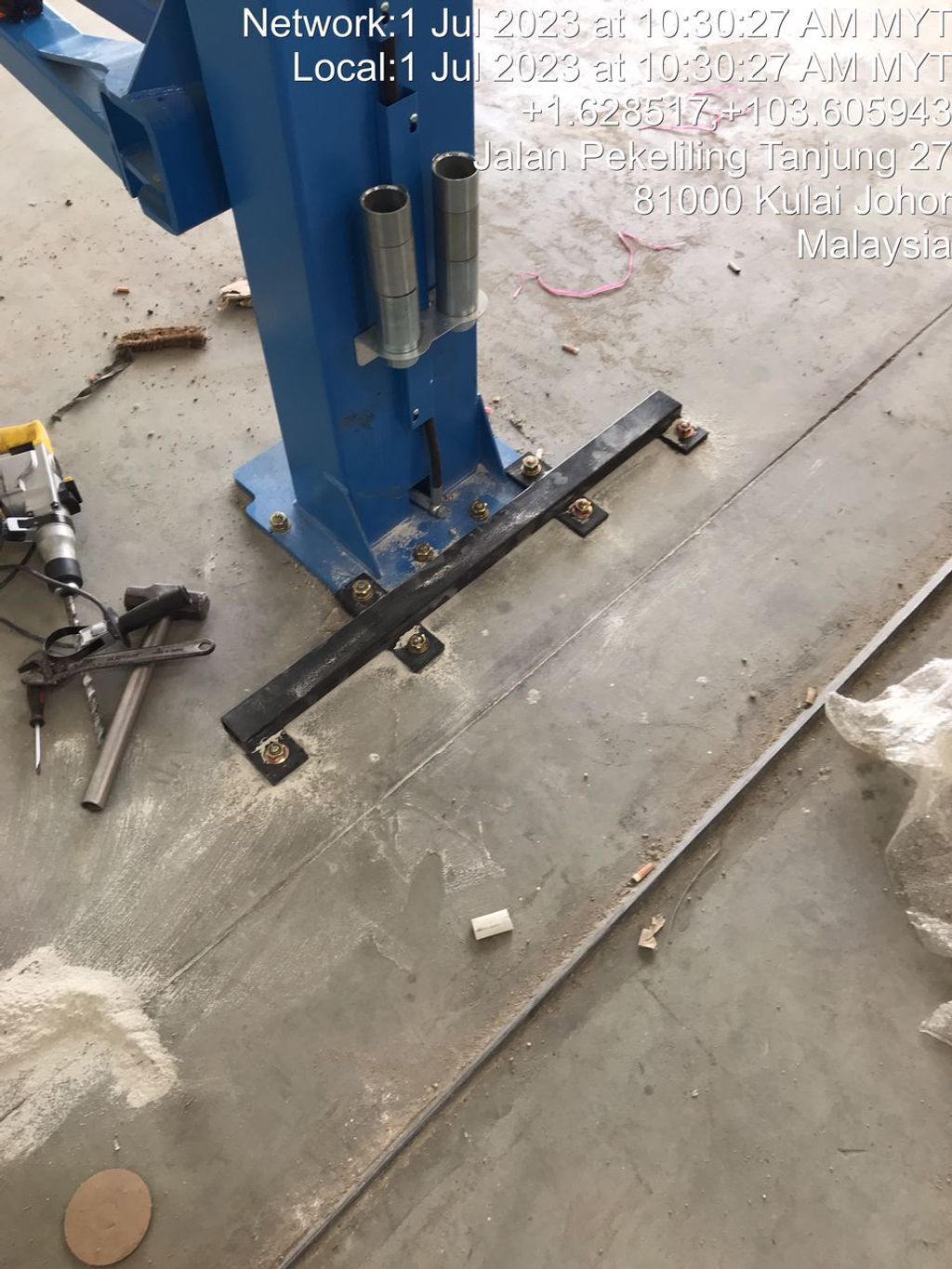

Workshop requirements

• 150mm steel mesh reinforced concrete (25-30 MPA)
• Baseplate extension kit available for 100 – 125mm concrete footing (Optional)

Warranty and Certification

• 12 months carry-in warranty against manufacture defect, effective from the date on delivery
• On-site service available on request, labour and transport charge apply (Including warranty period)
• JKKP design approved

What’s Not Included?  (We’ll help find the best, most reliable rate and send you the invoice.  Please contact us for a quote).

• Delivery by land or sea freight (The customer is always responsible for unloading the product from the truck).
• Installation at your companies premises
• Customer to supply electrical supply & connection to the equipment

Customer Support (Contact us directly):

• 011-53300199  |  011-35380700  |  016-2109299  |  016-2139299  |  012-3783703
