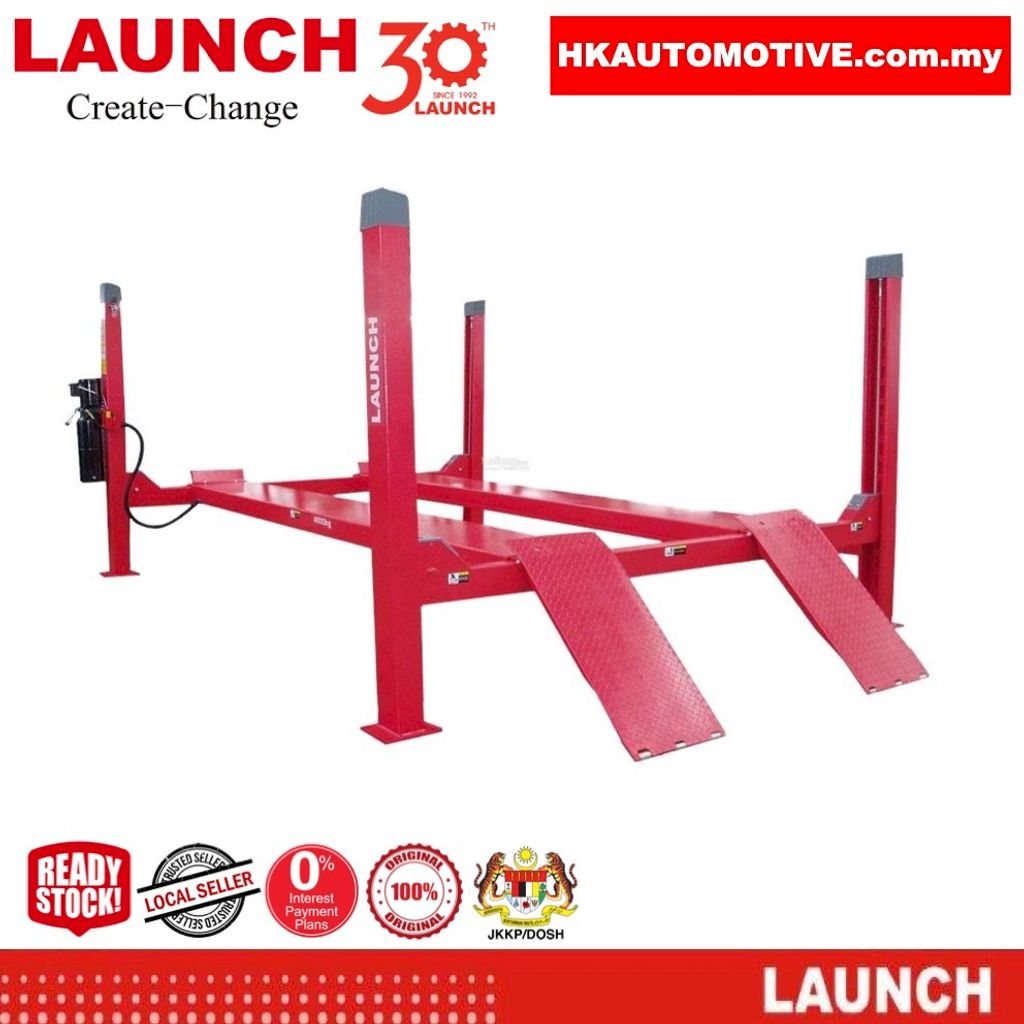

LAUNCH® TLT-455 5.5ton 4 Post Service Lifts

LAUNCH | TLT-455
Electro-hydraulic 4-Post Lift with automatic engagement of mechanical safety locks with pneumatic release system.

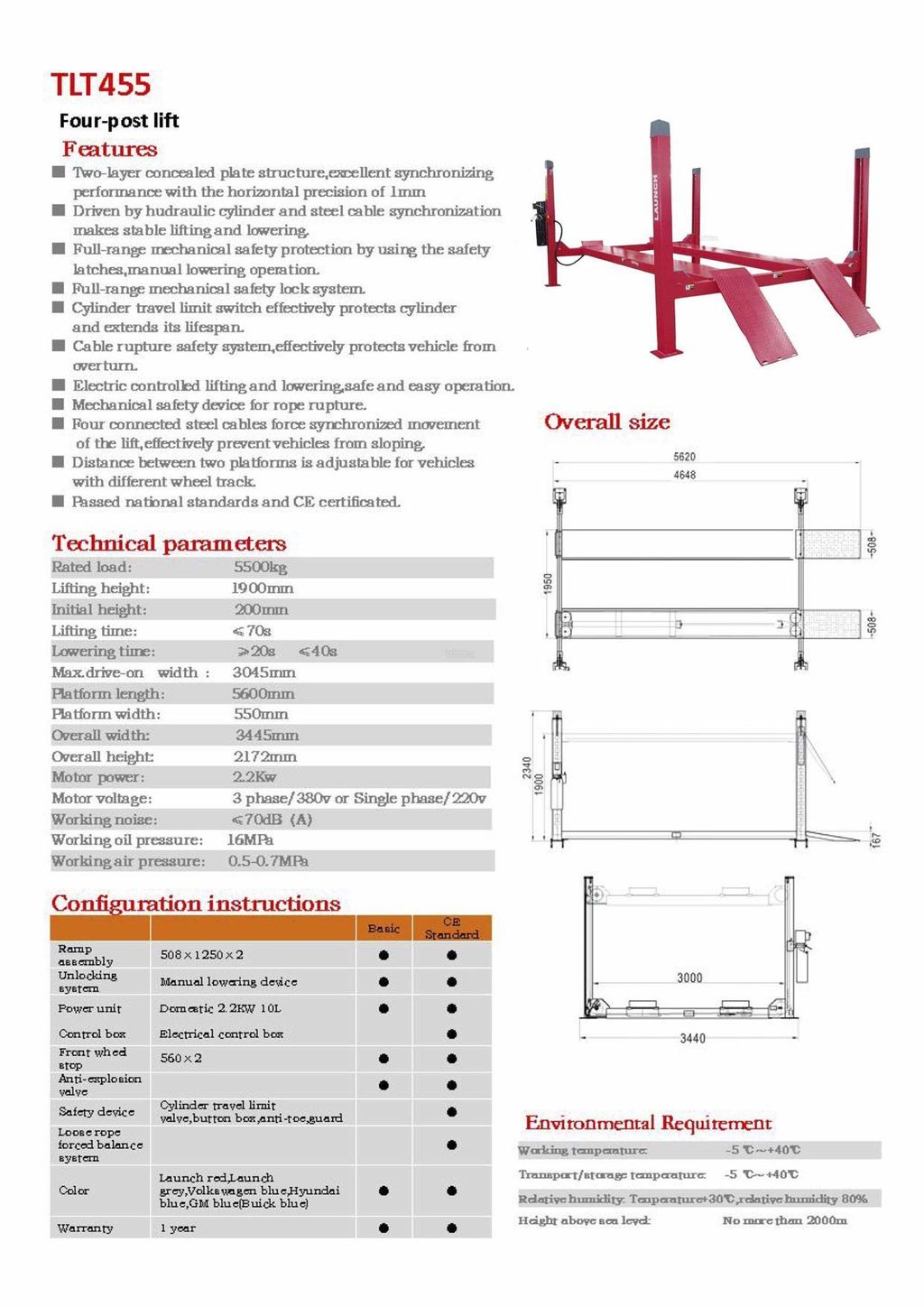

Technical data:

• Capacity: 5,500Kg
• Lifting height: 1900mm
• Min. height: 245mm
• Drive thru clearance: 3050mm
• Overall width: 3455mm
• Overall height: 2304mm
• Overall length: 6692mm
•  Overall length (w/o ramps): 5600mm
• Lifting time: 50sec
• Power supply: 380V/50Hz/3Ph
•  Electric Motor: 3HP (2.2kW)
• Net weight: 1450Kg

Shipping method:

• By land or sea freight
• The customer is always responsible for unloading the product from the truck.


Terms & conditions:

• 12 months carry-in warranty against manufacture defect, effective from the date on delivery.
• On-site service available on request, labour and transport charge apply (Including warranty period).
