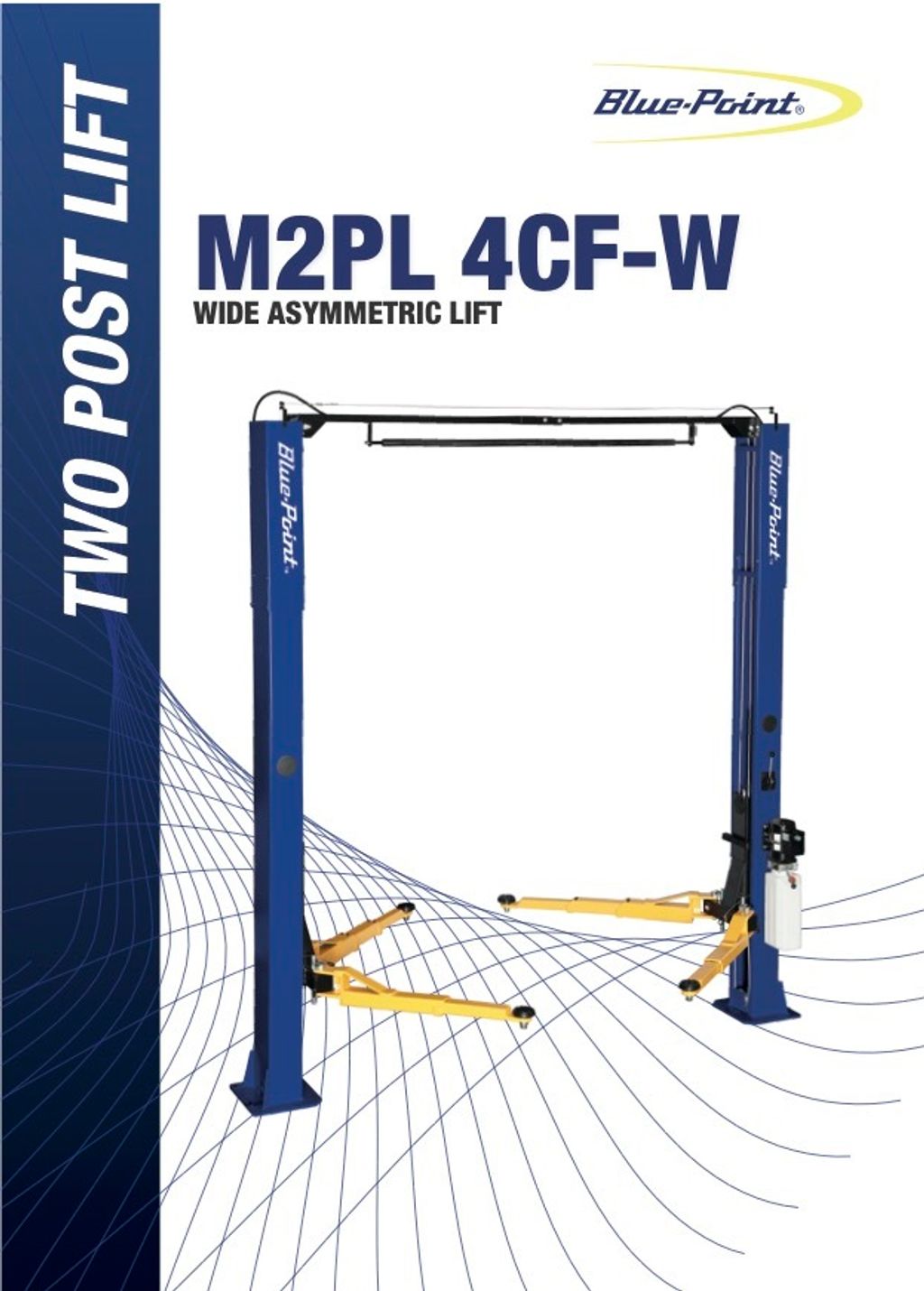

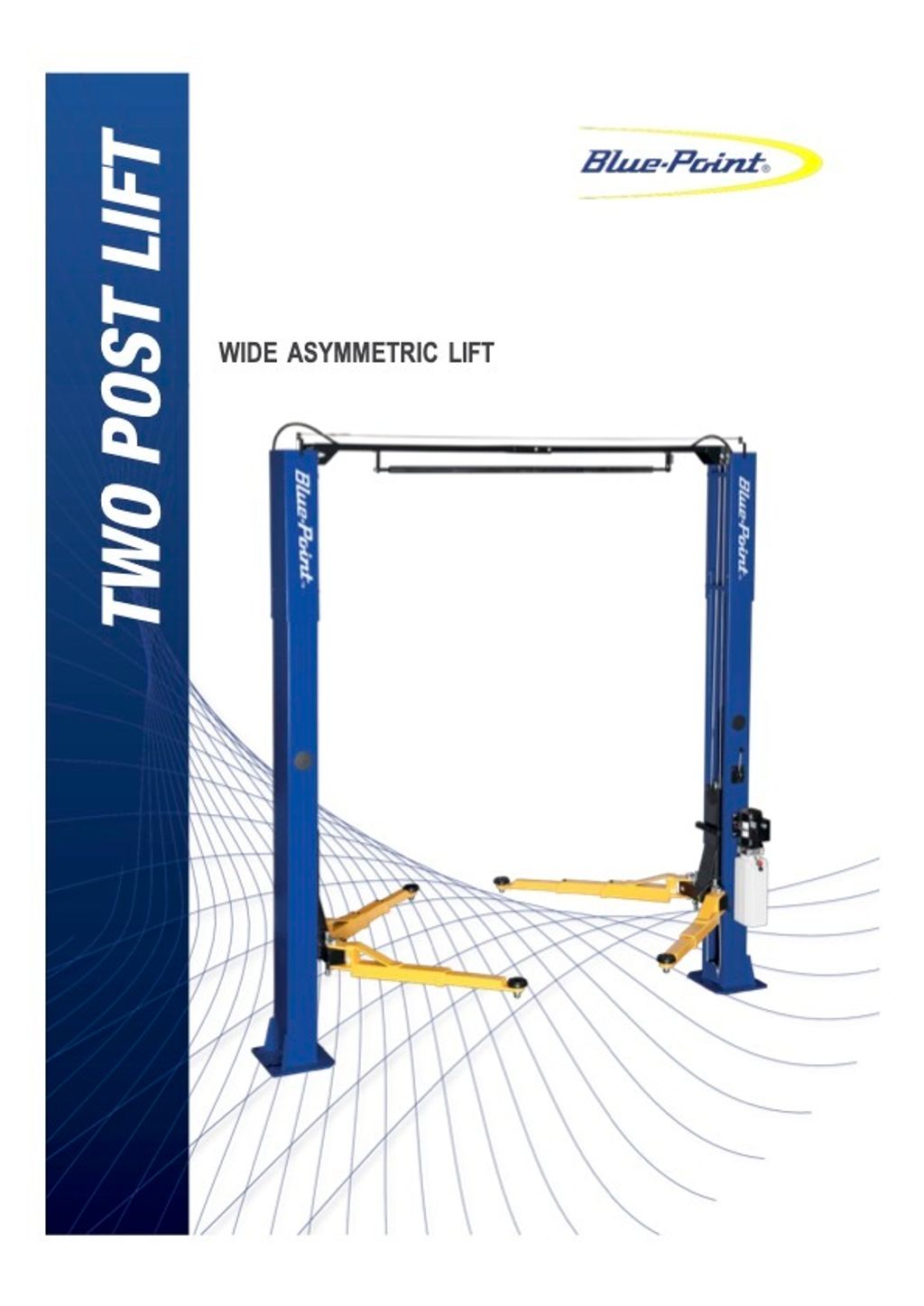

BLUE-POINT® M2PL 4CF-W 4Ton Clear-Floor 2-Post Lift - Wide

BLUE-POINT | M2PL 4CF-W
Electro-hydraulic wide asymmetric Clear-Floor 2-Post Lift with the two-stage and three-stage arms and automatic engagement of mechanical safety locks with single point release system.

Technical data:

• Lifting Capacity: 4000kg
• Min. Height: 110mm
• Max. Lifting Height: 1821mm
• Overall Height: 3676mm
• Width between Posts: 2551mm
• Arms extraction Length: 1150-1320mm
• Arms retracted Length: 820~740mm
• Lifting/Lowering Time: 40~60 / 25~70 Sec.
• Maximum operating pressure: 21Mpa
• Motor Power: 2.2kW
• Power Supply: 220V/50Hz/1Ph
• Net weight: 700Kg

Workshop requirements

• Minimum Ceiling height of 4260mm
• 150mm steel mesh reinforced concrete (25-30 MPA)
• Baseplate extension kit available for 100 – 125mm concrete footing (Optional)

Warranty and Certification

• 12 months carry-in warranty against manufacture defect, effective from the date on delivery
• On-site service available on request, labour and transport charge apply (Including warranty period)
• DOSH (JKKP) Hoisting machine design registered

What’s Not Included?  (We’ll help find the best, most reliable rate and send you the invoice.  Please contact us for a quote).

• Delivery by land or sea freight (The customer is always responsible for unloading the product from the truck).
• Installation at your companies premises
• Customer to supply electrical supply & connection to the equipment

Customer Support (Contact us directly):

• 011-53300199  |  011-35380700  |  016-2109299  |  016-2139299  |  012-3783703
