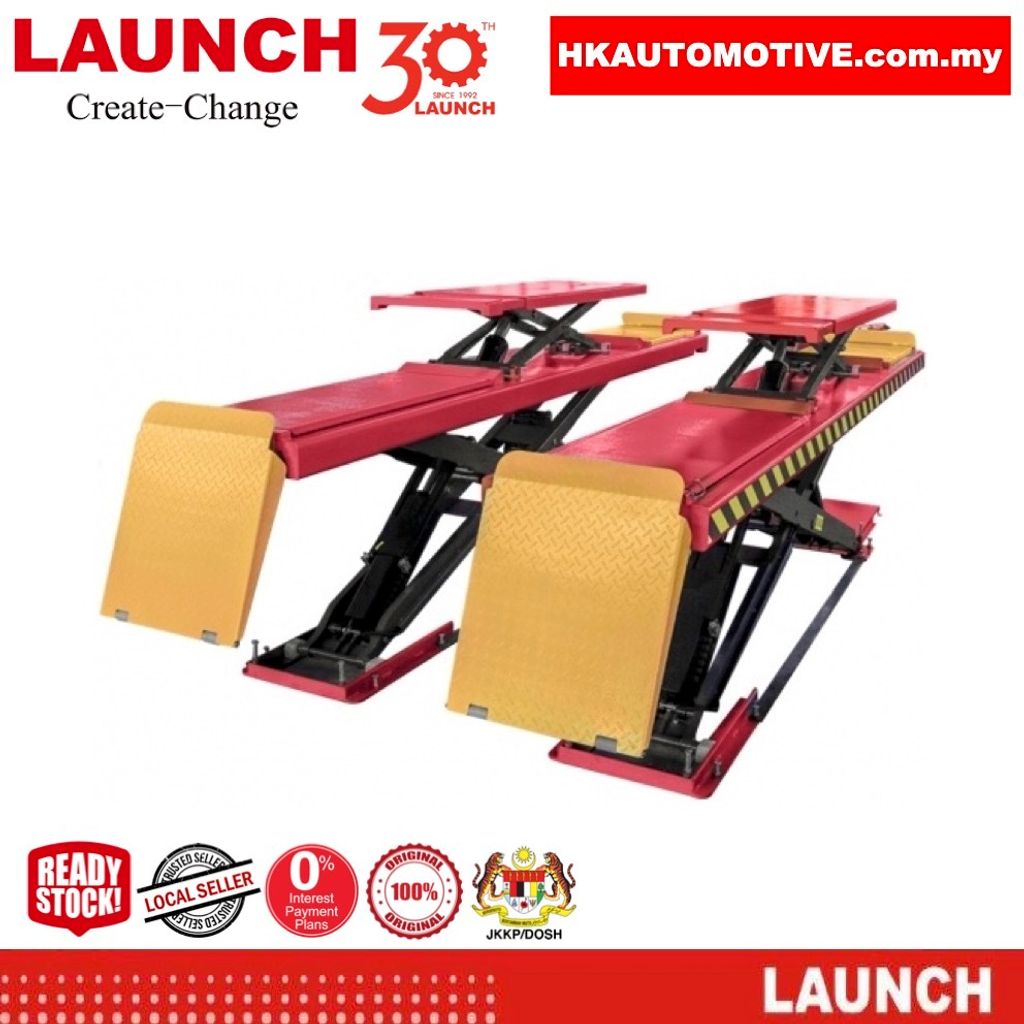

LAUNCH® TLT840WAF 4Ton Ultra Thin Wheel Alignment Scissor Lifts

RM 35,000.00


Big Scissor Lift takes space-saving style to save most workspace for diagnostic business. The hidden scissor structure is ultra-thin and the rated load reaches 4000kg. Many physical installations and settings ensure effective and efficient operations to be safe and reliable. It has very good horizontal adjustment ability for precisely adjusting horizontal accuracy, super fittable for the four-wheel alignment detection.


  • Rated Load: 4000kg
  • Lifting Height: 1850mm
  • Initial Height: 160mm

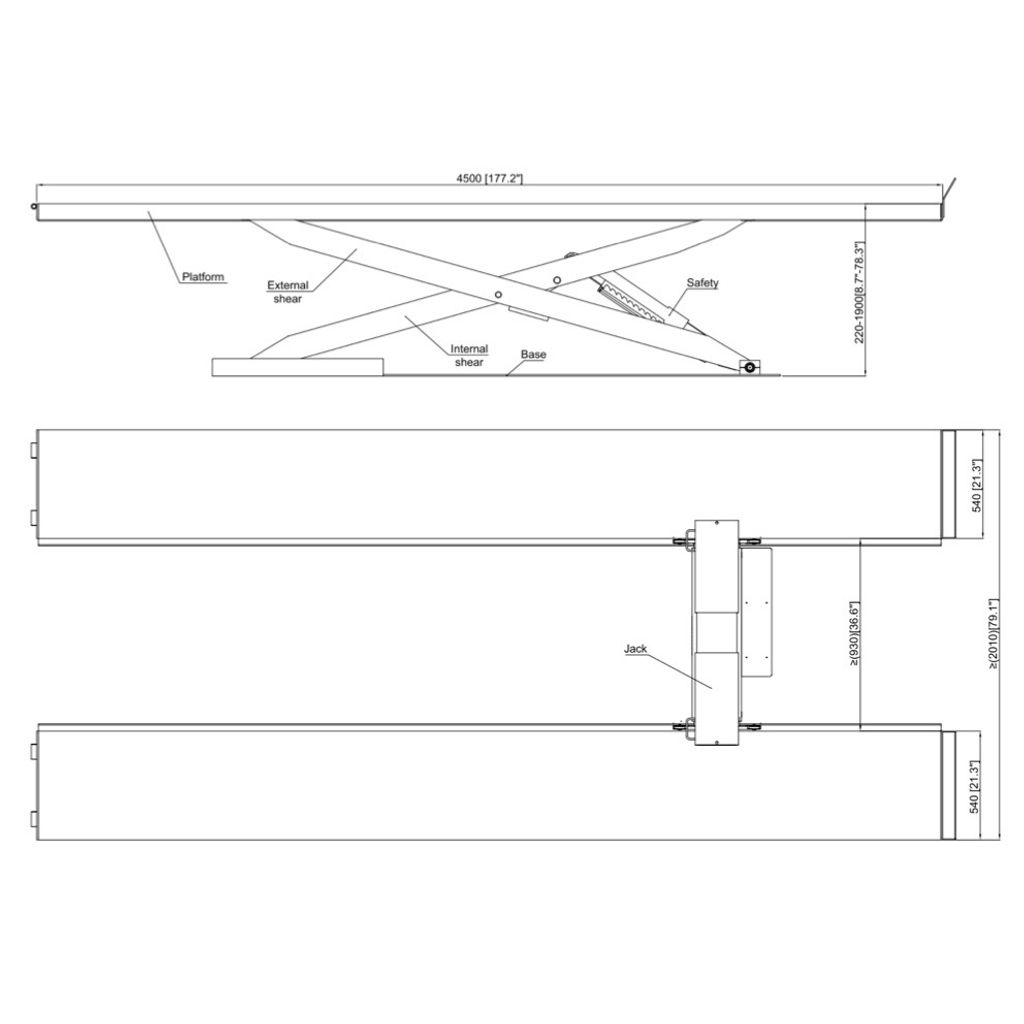

  • Runway Length: 4500mm
  • Runway Width: 680mm
  • Lifting Time: ≤50s
  • Lowering Time: ≤60s
  • Motor Power: 2.2KW
  • Motor Voltage: AC 400V or 230V ±5% 50Hz
  • Air Pressure: 6~8kg/cm²
  • Net Weigh: 2500kg

Workshop requirements

  • 150mm steel mesh reinforced concrete (25-30 MPA)

Warranty and Certification

  • 12 months carry-in warranty against manufacture defect, effective from the date on delivery
  • On-site service available on request, labour and transport charge apply (Including warranty period)
  • DOSH (JKKP) Hoisting machine design registered

What’s Not Included?  (We’ll help find the best, most reliable rate and send you the invoice.  Please contact us for a quote).

  • Delivery by land or sea freight (The customer is always responsible for unloading the product from the truck).
  • Installation at your companies premises
  • Customer to supply electrical supply & connection to the equipment

Customer Support (Contact us directly):

  • 011-53300199  |  011-35380700  |  016-2109299  |  016-2139299  |  012-3783703
