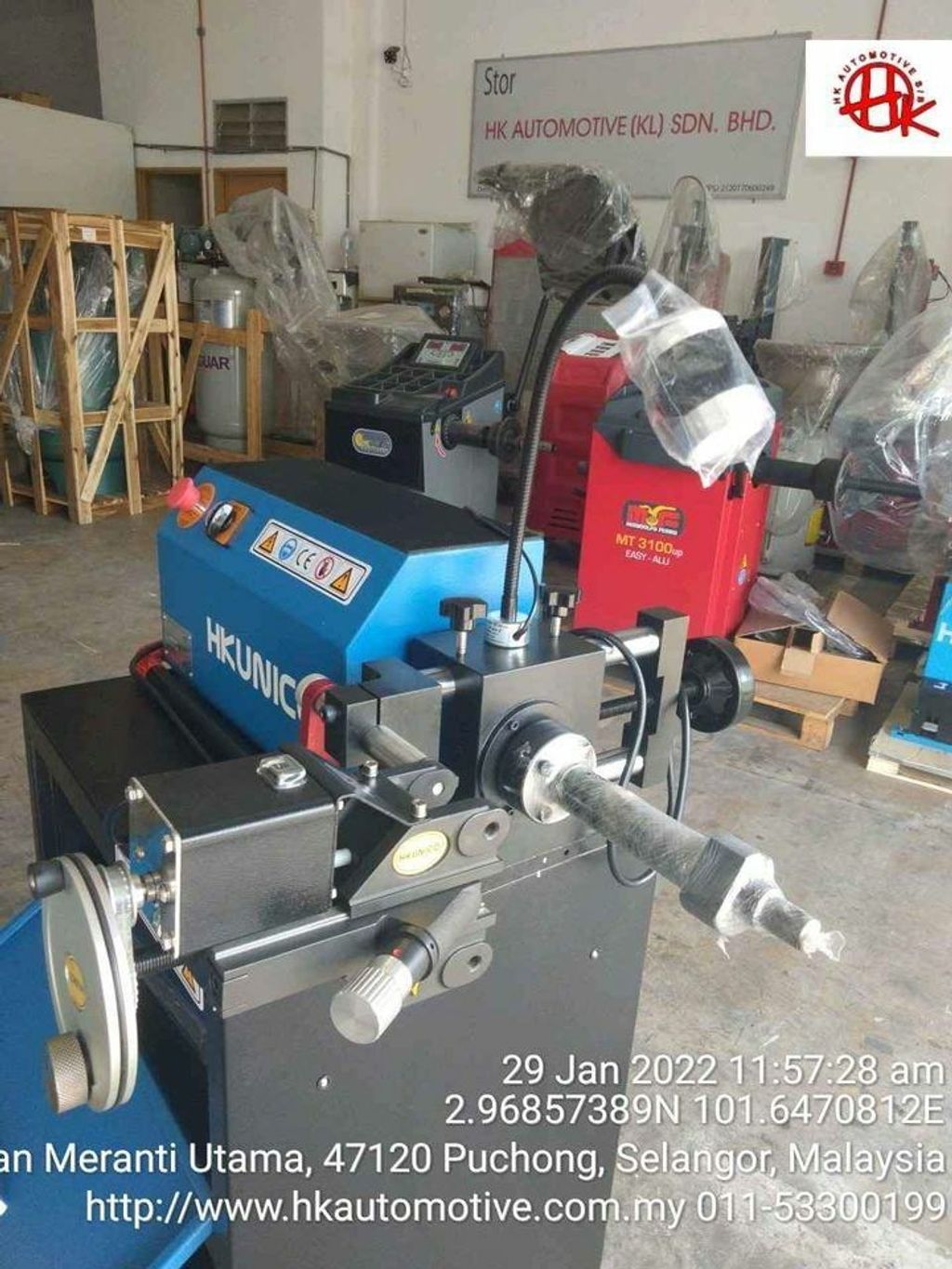

HKUNICO® HK800 Movable Off-the-car brake disc c/w drive unit

RM 7,500.00

HKUNICO | HK800
Movable on/off-the-car brake disc and drum lathe c/w drive unit.

Technical data:
1. Brake Disc Lathe:

  • Maximum brake disc thickness: 42mm
  • Maximum brake disc diameter: 380mm
  • Adjustment knob accuracy: 0.005mm
  • Cutting accuracy: ≤0.02mm
  • Feed rate: 8.5mm/min
  • Power requirements: 220V/50Hz /1Ph
  • Net weight: 7.3kg

2. Drive Unit: -

  • Working height: 380 - 1,200mm
  • Drive speed: 120rpm
  • Decelerate motor voltage: 220V/50Hz/1Ph
  • Decelerate motor power: 400W
  • Ambient temperature range: -20°C to 40°C
  • Turning accuracy: ≤ 0.005mm
  • Brake disc runout: ≤ 0.005mm
  • Brake disc thickness variation: 0.005 – 0.01mm
  • Brake disc surface roughness: Ra 1.5 – 2.0um
  • Weight: 120kg

Warranty and Certification

  • 12 months carry-in warranty against manufacture defect, effective from the date on delivery
  • On-site service available on request, labour and transport charge apply (Including warranty period)


What’s Not Included?  (We’ll help find the best, most reliable rate and send you the invoice.  Please contact us for a quote).

  • Delivery by land or sea freight (The customer is always responsible for unloading the product from the truck).
  • Installation at your companies premises
  • Customer to supply electrical supply & connection to the equipment
