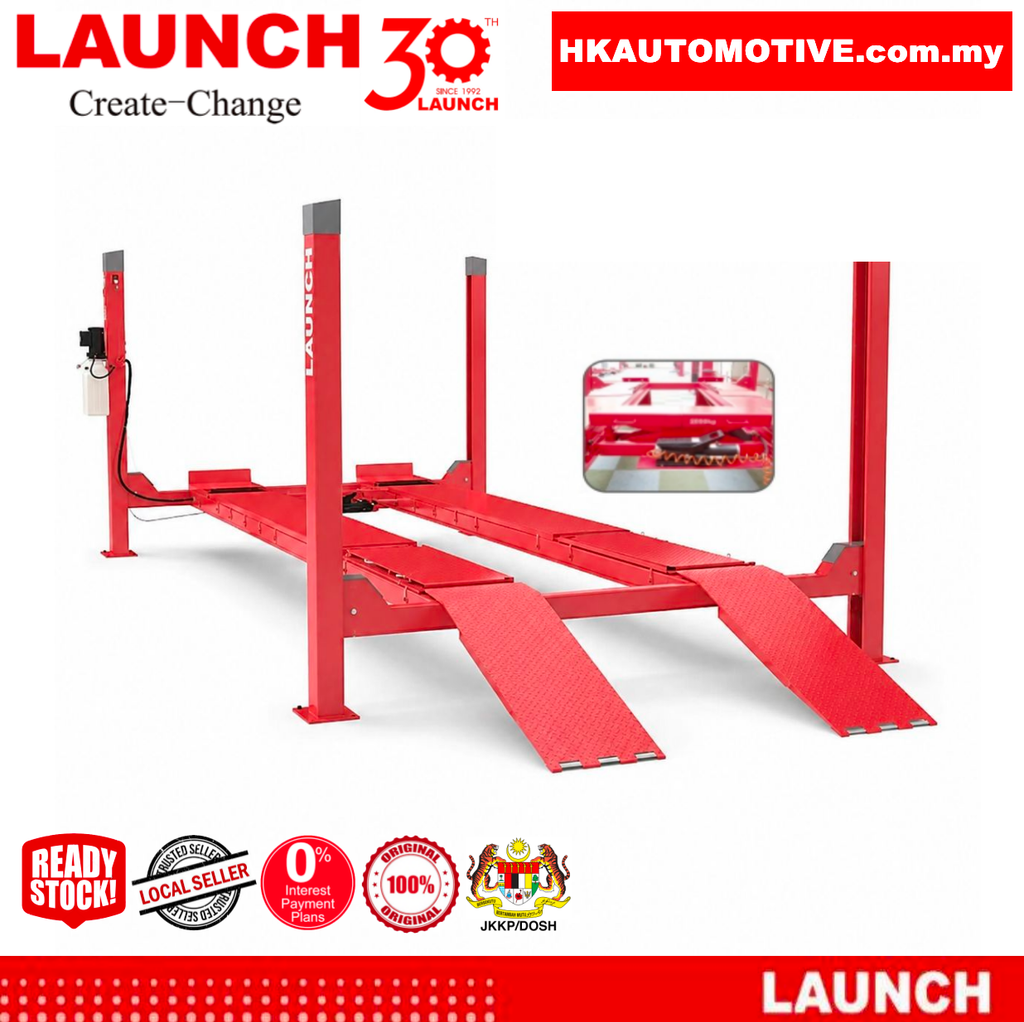

LAUNCH® TLT440W 4Ton Wheel Alignment 4-Post Lifts

LAUNCH® | TLT-440W
Electro-hydraulic 4-Post Alignment Lift with automatic engagement of mechanical safety locks with pneumatic release system.

Technical data:

• Capacity: 4000Kg
• Lifting height: 1900mm
• Min. height: 170mm
• Drive thru clearance: 3000mm
• Overall width: 3440mm
• Overall height: 2304mm
• Overall length: 5400mm
• Overall length (w/o ramps): 4555mm
• Lifting time: 50sec
• Power supply: 380V/50Hz/3Ph
• Electric Motor: 3HP (2.2kW)
• Net weight: 1200Kg

Workshop requirements

• 150mm steel mesh reinforced concrete (25-30 MPA)

Warranty and Certification

• 12 months carry-in warranty against manufacture defect, effective from the date on delivery
• On-site service available on request, labour and transport charge apply (Including warranty period)
• JKKP design approved

What’s Not Included?  (We’ll help find the best, most reliable rate and send you the invoice.  Please contact us for a quote).

• Delivery by land or sea freight (The customer is always responsible for unloading the product from the truck).
• Installation at your companies premises
• Customer to supply electrical supply & connection to the equipment
