TLT615D

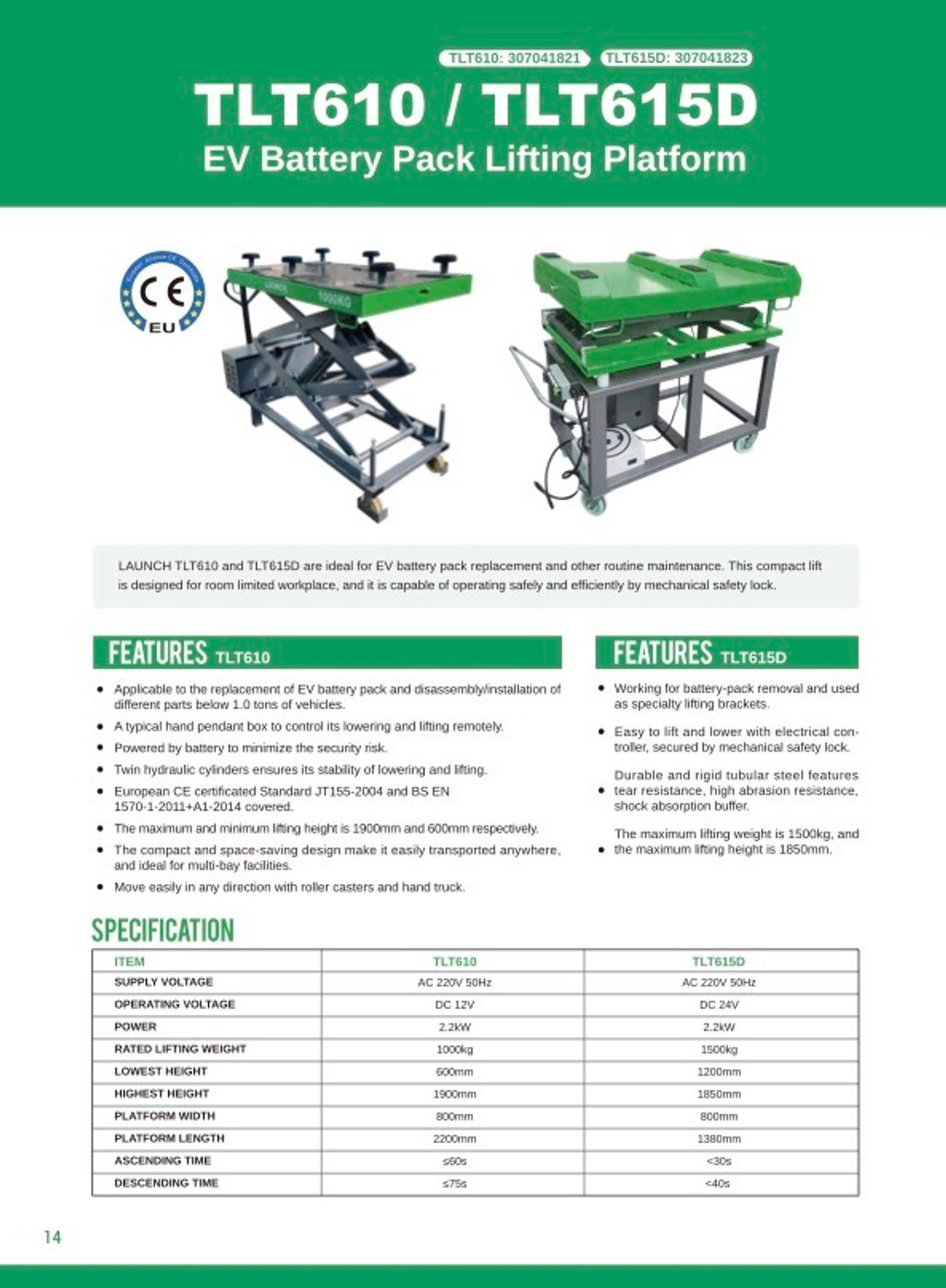

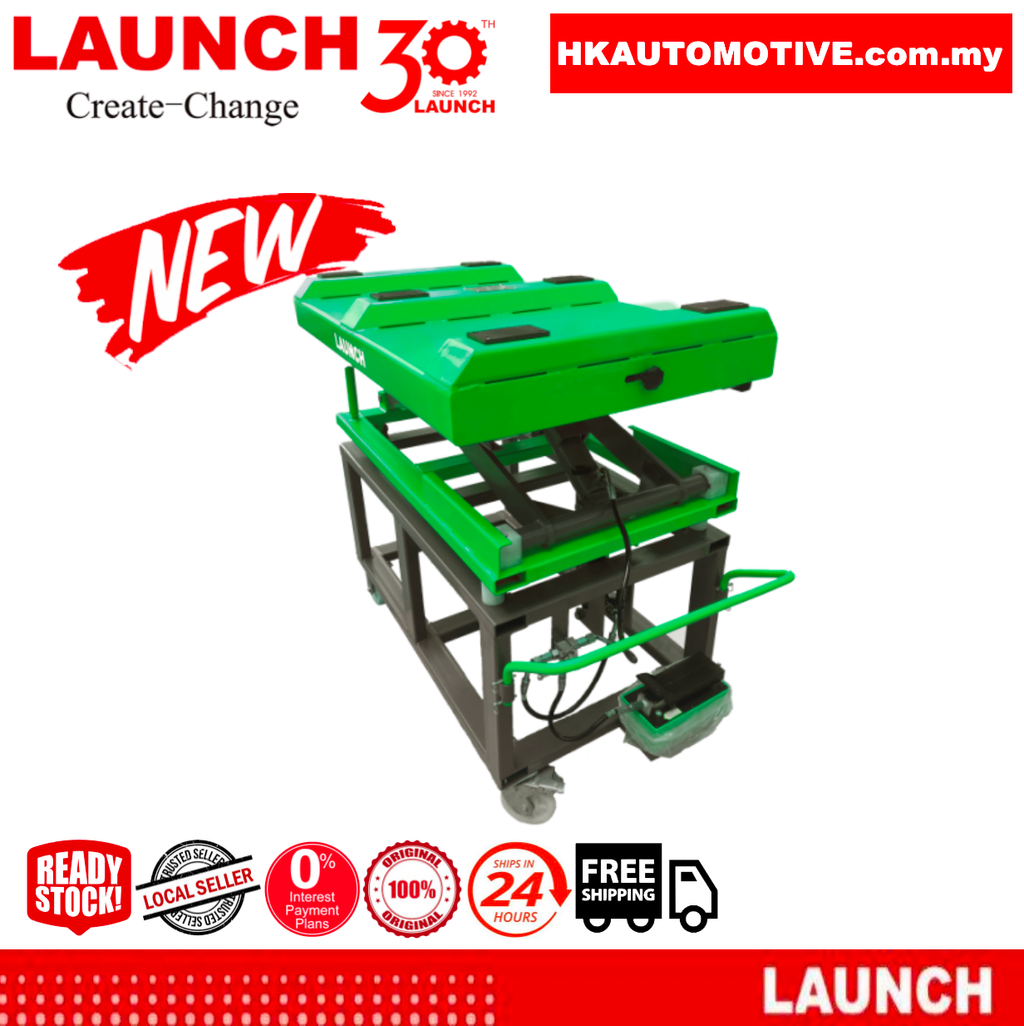

LAUNCH® TLT615D EV Battery Pack Lifting Platform

RM 11,000.00
View More

https://en.cnlaunch.com/products-detail/i-241.html

LAUNCH® | TLT615D

EV Battery Pack Lifting Platform, LAUNCH TLT615D is ideal for EV Battery pack replacement and other routine maintenance. This compact lift is designed for room limited workplace, and it is capable of operating safely and efficiently by mechanical safety lock.

Features

  • Working for battery-pack removal and used as specialty lifting bracket.
  • Easy to lift and lower with electrical controller, secured by mechanical safety lock.
  • Durable and rigid tubular steel features tear resistance, high abrasion resistance, shock absorption buffer.
  • The maximum lifting weight is 1500kg, and the maximum lifting height is 1850mm.

Technical data:

  • Supply voltage: AC220V 50Hz
  • Operating voltage: DC 24V
  • Power: 2.2Kw
  • Rated lifting weight: 1500kg
  • Lowest height: 1200mm
  • Highest height: 1850mm
  • Platform width: 800mm
  • Platform length: 1380mm
  • Ascending time: <30S
  • Descending time: <40S

Warranty and Certification

  • 12 months carry-in warranty against manufacture defect, effective from the date on delivery
  • On-site service available on request, labour and transport charge apply (Including warranty period)

What’s Not Included?  (We’ll help find the best, most reliable rate and send you the invoice.  Please contact us for a quote).

  • Delivery by land or sea freight (The customer is always responsible for unloading the product from the truck).
  • Installation at your companies premises
  • Customer to supply electrical supply & connection to the equipment
