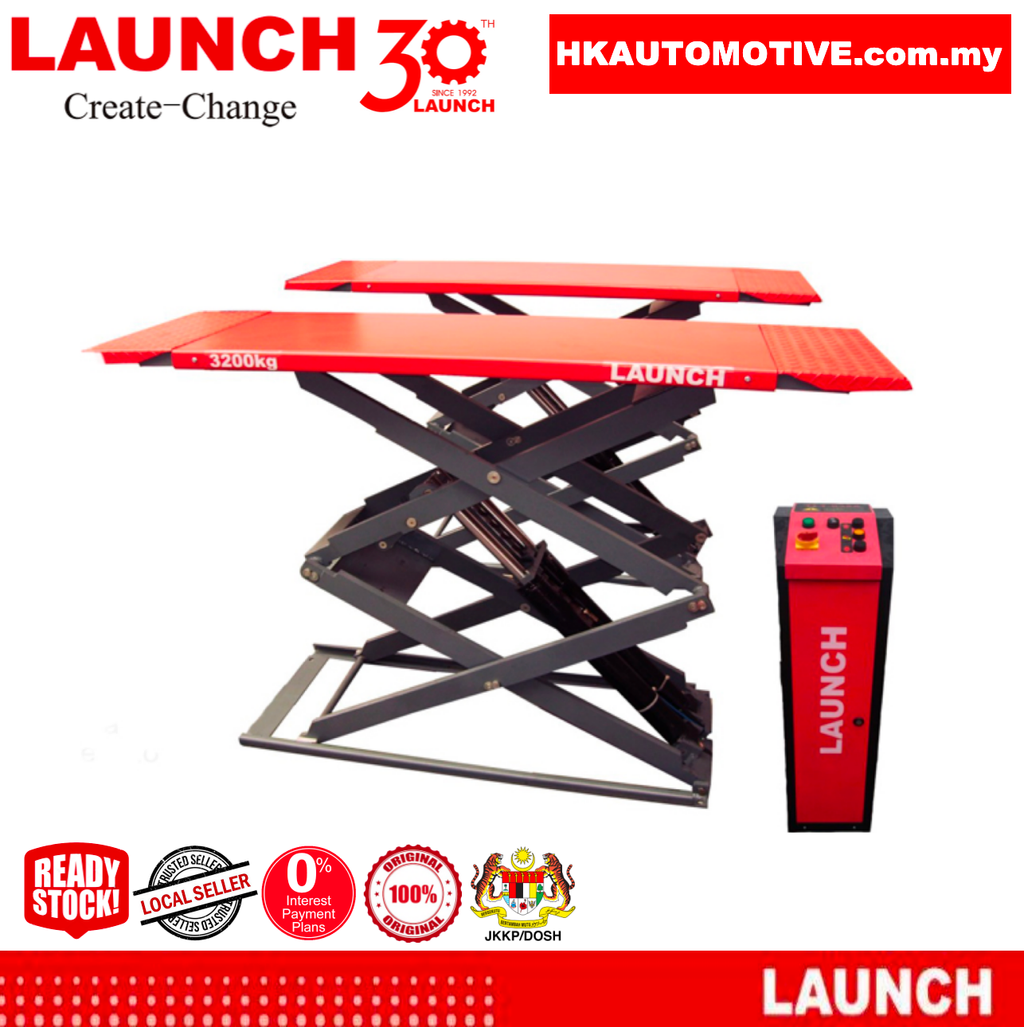

LAUNCH® TLT635AF 3.5Ton Full-rise low profile Scissor Lifts ( (On-ground Type)

LAUNCH | TLT-635AF

The twin scissor lift with a capacity of 3.5 t was especially designed for over-ground installation and can handle almost all heavy-weight passenger cars and vans. The ultra-flat construction allows lifting of sport cars and very low-built vehicles. Design based on international requirement and safety standards, CE certification for quality, ISO 9001:2000 quality assurance.

Tech Specs:

• Capacity: 3500 kg
• Lifting height: 1990 mm
• Lowest lifting height: 105 mm
• Runway length: 1495~2035mm
• Runway width: 616mm
• Lifting time: ≤50s
• lowering time: ≤60s
• Motor power: 2.2kW
• Voltage: AC400V or 230V 50Hz
• Air pressure: 6~8kg
• Weight: 860 kg

Workshop requirements

• 150mm steel mesh reinforced concrete (25-30 MPA)

Warranty and Certification

• 12 months carry-in warranty against manufacture defect, effective from the date on delivery
• On-site service available on request, labour and transport charge apply (Including warranty period)
• DOSH (JKKP) Hoisting machine design registered

What’s Not Included?  (We’ll help find the best, most reliable rate and send you the invoice.  Please contact us for a quote).

• Delivery by land or sea freight (The customer is always responsible for unloading the product from the truck).
• Installation at your companies premises
• Customer to supply electrical supply & connection to the equipment
